Types of Robot Wheels: Caster, Omni Wheel, and Hub Motor Options for Medical Robots

Robot mobility design starts from the wheel system. Different types of robot wheels can change how a robot turns, carries load, moves in narrow indoor spaces and integrates with drive control. For medical robots, service robots, AMR platforms and intelligent mobile equipment, choosing the wrong wheel type can lead to unstable movement, poor turning performance or difficult system integration.

SECURE provides robot caster solutions, omni wheels, hub motor wheels and motorized casters for robot and intelligent equipment applications. This guide explains how to compare common wheel options.

What Are Robot Wheels?

Robot wheels are wheel systems used to support movement, steering and load distribution in robotic platforms. Some robot wheels are passive and only support rolling or balancing. Others are driven by motors and connected to control systems. A robot caster wheel may be used as a support wheel, steering wheel or part of a wider robot mobility solution.

The right choice depends on platform weight, payload, movement direction, drive mode, control method, floor condition and installation space.

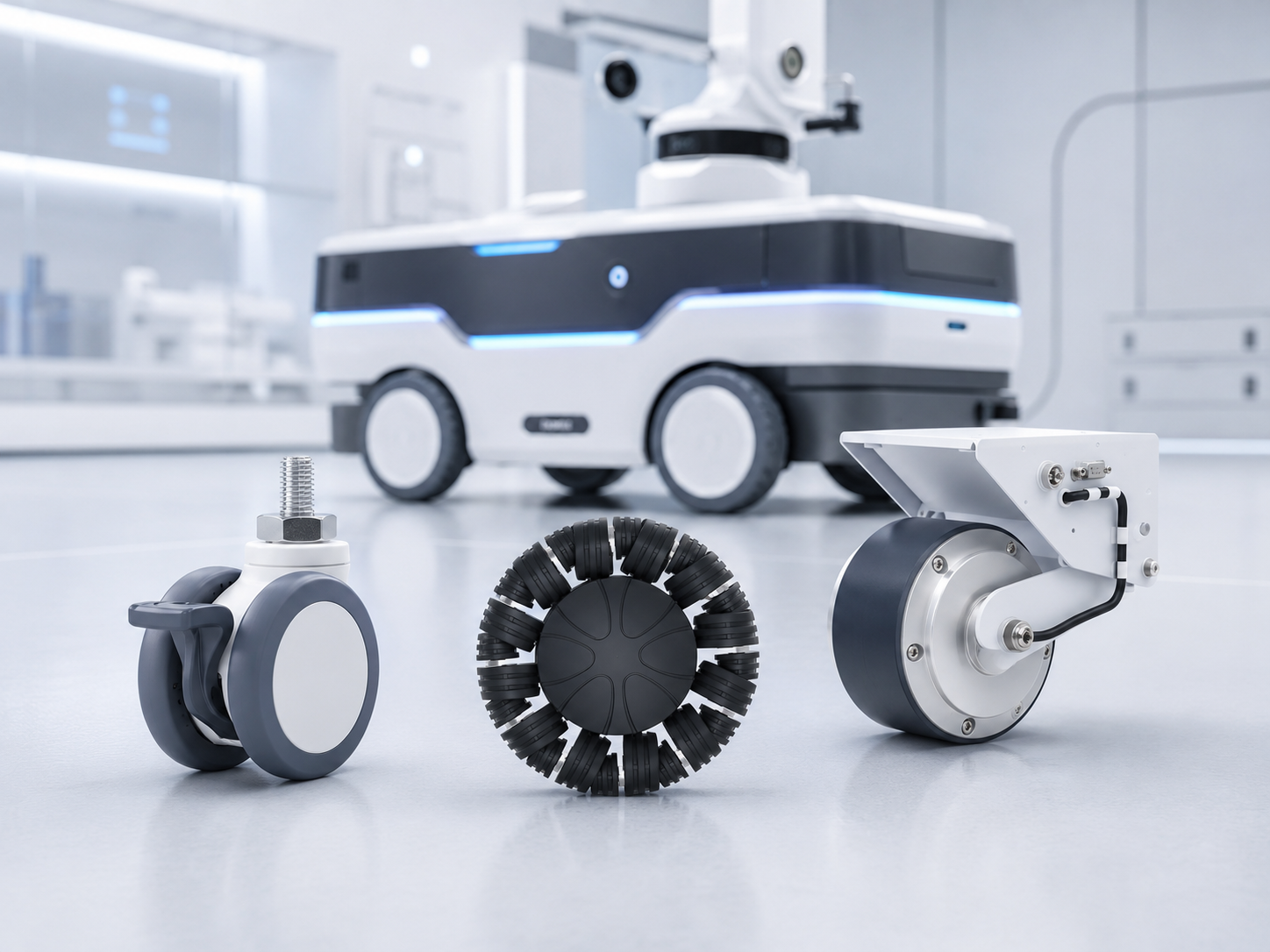

Comparison of Common Types of Robot Wheels

Robot Caster Wheels for Support and Stability

A robot caster wheel is often used when the robot needs smooth support, stable load distribution or flexible steering. In many service robots and medical robots, caster wheels are combined with driven wheels to balance the platform and improve movement stability.

Robot caster selection should consider wheel diameter, load capacity, tread material, bearing design and floor condition. For indoor healthcare or commercial spaces, low noise, floor protection and smooth rolling are especially important.

Omni Wheels for Multi-Directional Movement

Omni wheels are designed with small rollers around the wheel body. This structure allows the wheel to move in multiple directions depending on robot design and control method. For robots that need to turn in limited spaces or move laterally, omni wheels can provide better movement flexibility than standard wheels.

If your project requires lateral movement, compact turning or precise positioning in narrow indoor spaces, omni wheels may be suitable. However, buyers should confirm wheel layout and control method before selection, because omni wheel performance depends strongly on platform design.

Hub Motor Wheels for Integrated Drive

Hub motor wheels integrate the motor inside or near the wheel structure. This can help save installation space and simplify powered movement design. For robot platforms with compact chassis requirements, a hub motor design may reduce the need for external transmission components.

When choosing from types of robot wheels, hub motor wheels should be considered when the robot requires powered movement, defined speed, torque control and electronic integration. SECURE provides hub motor wheel solutions for OEM equipment and intelligent mobility systems.

Motorized Casters for Smart Medical Equipment

Some intelligent equipment does not need a full robot chassis but still requires assisted movement. In this case, motorized casters may be a better fit. They can support powered movement for smart hospital beds, mobile medical platforms, powered carts and other indoor devices.

Compared with a standard robot caster, a motorized caster is more suitable when the equipment needs drive assistance rather than only passive rolling.

How to Choose the Right Robot Wheel

Start with the total platform weight. Include the robot body, battery, payload, sensors, equipment modules and any accessories. Then confirm the wheel quantity and wheel layout. A four-wheel platform will distribute weight differently from a three-wheel design.

Next, confirm movement direction. If the robot only moves forward and backward, standard caster support may be enough. If it needs lateral movement, rotation or multi-directional movement, omni wheels or a special layout may be required.

Finally, confirm drive mode and control method. Passive wheels, hub motor wheels and motorized casters have different integration requirements. The buyer should also consider speed, floor condition, noise requirements and installation space.

Conclusion

There is no single best answer for all types of robot wheels. A robot caster wheel may be ideal for support and steering. Omni wheels may be better for multi-directional movement. Hub motor wheels are useful for integrated drive systems. Motorized casters can help smart medical equipment move with less manual effort.

For OEM robot projects, the best approach is to provide platform weight, payload, wheel layout, drive mode, control method and floor condition. SECURE can then recommend suitable robot caster or powered mobility options.

FAQ

What types of robot wheels are commonly used?

Common types of robot wheels include standard caster wheels, omni wheels, hub motor wheels, motorized casters and support wheels.

What is a robot caster wheel?

A robot caster wheel is a caster wheel used to support robot movement, steering or load distribution in robotic platforms.

When should I choose omni wheels?

Choose omni wheels when the robot needs lateral movement, compact turning or multi-directional mobility in limited spaces.

Are hub motor wheels suitable for medical robots?

They can be suitable when the robot requires compact powered movement and integrated drive design. The final choice depends on load, speed, control method and chassis space.
