N Series 125 mm Single-Wheel Caster (Full Braking)

Main frame: high-load-bearing nylon, featuring strong oil resistance, wear resistance and chemical resistance for long service life.

Wheel core: polypropylene.

Tread: TPE material, soft to touch, with excellent weather resistance and shock absorption.


Equipped with precision ball bearings for quiet and smooth movement.

Optional large or small side decorative covers. Anti-entanglement design enables easy cleaning.

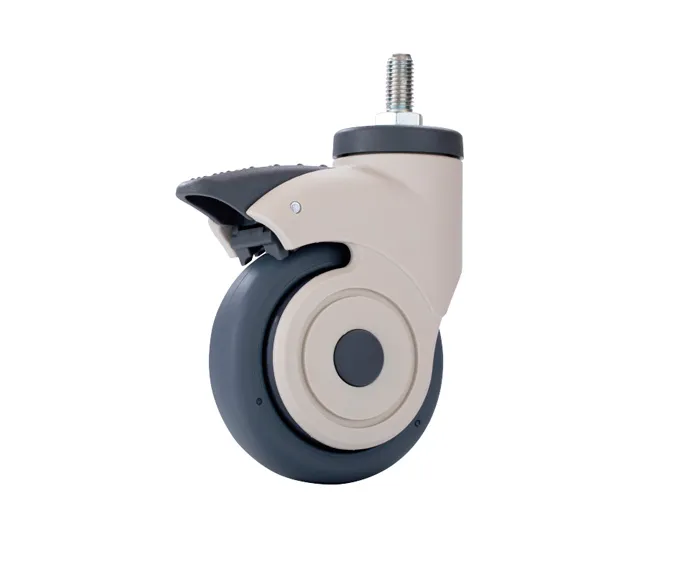

n series 125 mm single wheel caster company

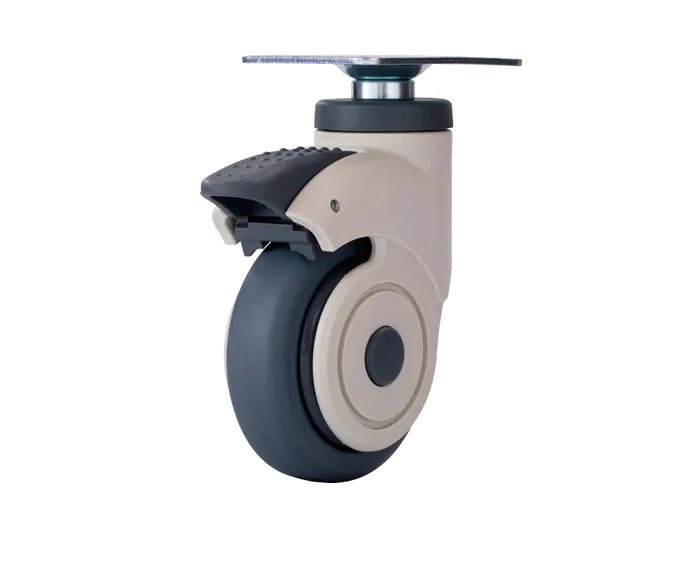

n series 125 mm single wheel caster factories

Specifications of N Series 125 mm Single-wheel Caster (Full Braking)

Wheel ModelWheel SizeNumber of WheelsBrake TypeMounting MethodScrew Length (mmSwivel Radius (mmWheel Disc Width (mm)Mounting Height (mm)Load Capacity (kg)Wheel Tread MateriaSpindle Material
NSD-125B- WG-M12X25125Single-WheelFull brakeScrew type25±0.5117±161.5±1180±1125TPENylon
NSD-125P- WG-95X70125Single-WheelFull brakeScrew type/117±161.5±1180±1125TPENylon


Download Product Specifications of N Series 125 mm Single-wheel Caster (Full Braking)
