N Series 100 mm Single-Wheel Caster (Full Braking)

Main frame: high-load-bearing nylon with excellent oil resistance, wear resistance and chemical resistance for long service life.

Wheel core: polypropylene.

Tread: TPE material, soft-touch, strong weather resistance and superior shock absorption.


Equipped with precision ball bearings for quiet and smooth operation.

Optional large or small side decorative covers. Anti-entanglement design enables easy cleaning.

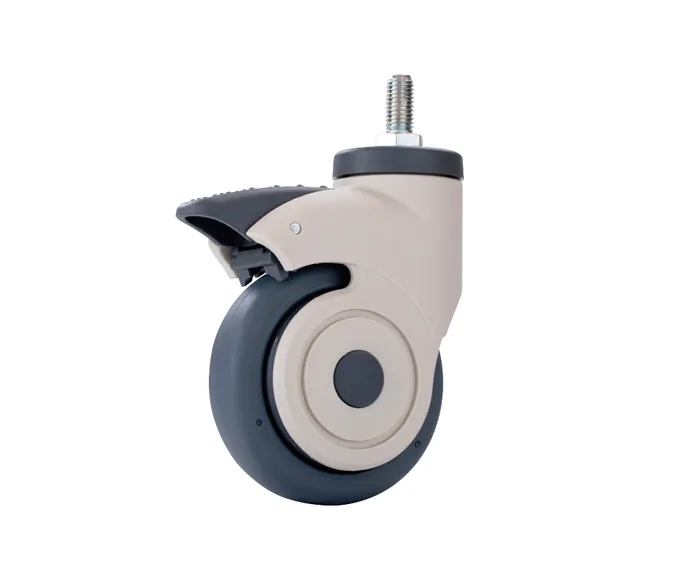

n series 100 mm single wheel caster wholesale manufacturers

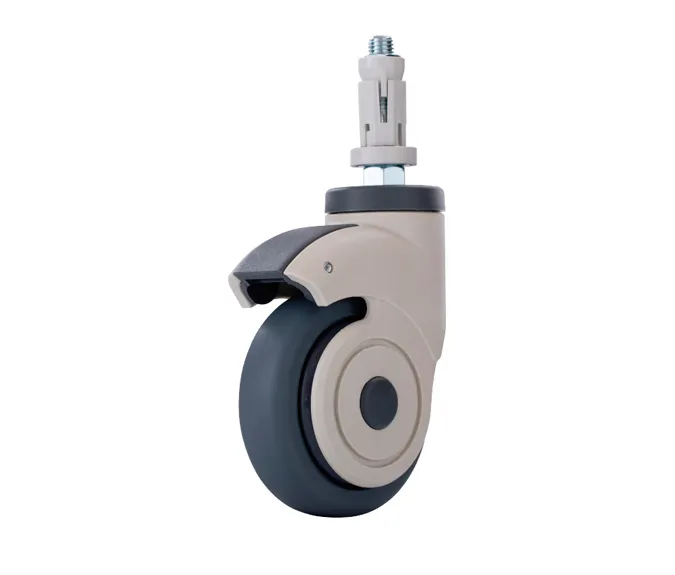

n series 100 mm single wheel caster supplier

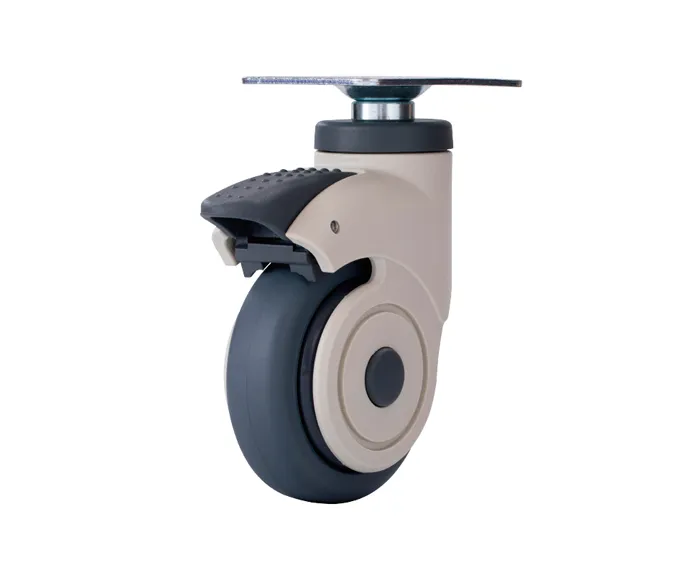

n series 100 mm single wheel caster manufacturer

Specification of N Series 100 mm Single-wheel Caster (Full Braking)

Wheel ModelWheel SizeNumber of WheelsBrake TypeMounting MethodScrew Length (mmSwivel Radius (mmWheel Disc Width (mm)Mounting Height (mm)Load Capacity (kg)Wheel Tread MateriaSpindle Material
NSD-100B- WG-M12X25100Single-WheelFull brakeScrew type25±0.5101±157.5±1101±1154±1TPENylon
NSD-100P- WG-95X70100Single-WheelFull brakeScrew type/101±157.5±1101±1154±1TPENylon


Download Product Specifications of N Series 100 mm Single-wheel Caster (Full Braking)
