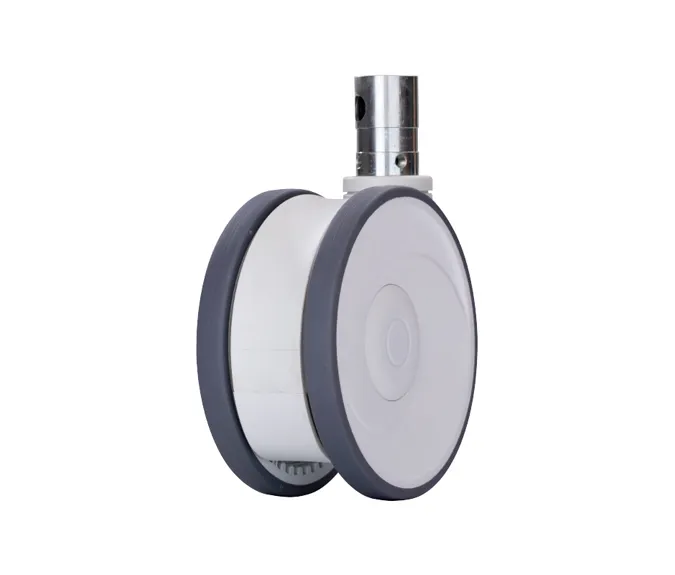

GC Series 150 mm Central Lock Caster

The GC series central control dual-wheel casters feature swivel and full-locking functions with precision bearings. Their integrated frame, made of PA6, PP and steel, ensures strong load capacity, noise reduction and shock absorption. Stable, durable and reliable, they fit lock levers with cam holes, ideal for medical beds.

gc series 150 mm central lock caster wholesale suppliers

Specifications of GC Series 150 mm Central Lock Caster

Wheel ModelWheel SizeNumber of WheelsBrake GearsBrake TypeMounting MethodScrew Length (mm)Swivel Radius (mm)Wheel Disc Width (mm)Mounting Height (mm)Load Capacity (kg)Wheel Tread MateriaSpindle Material
G150C-062- D32X50-3D-2_30150Twin-Wheel3 gears with 2 functionsFull brakeScrew type/122.574±1155±1150PUR/
G150C-062- D32X50-3D30150Twin-Wheel3 gears for casterFull brakeScrew type/122.574±1155±1150PUR/


Features of GC Series 150 mm Central Lock Caster

Features of GC Series 150 mm Central Lock Caster
  • Swivel and full-locking rotating casters

    With precision ball bearings built into the wheel discs.

  • Integrated wheel frame

    Adopts PA6 nylon main frame and PP polypropylene wheel core, featuring strong load-bearing capacity.

  • TPU wear-resistant wheel surface

    Helps reduce noise and absorb shocks.

  • Integral steel spindle

    Enhances wheel stability and durability, ensuring safety and reliability.

  • Applicable locking control lever

    Wheel rod with cam hole.
