FC Series 75mm Central Lock Caster

The caster is available in long and short rod versions, featuring swivel and full-locking rotation functions. It has strong load-bearing capacity, excellent stability and durability, is easy to operate, and can reduce noise and vibration. It is suitable for mobile carts.

Contact Us Get Catalog
hospital bed wheels

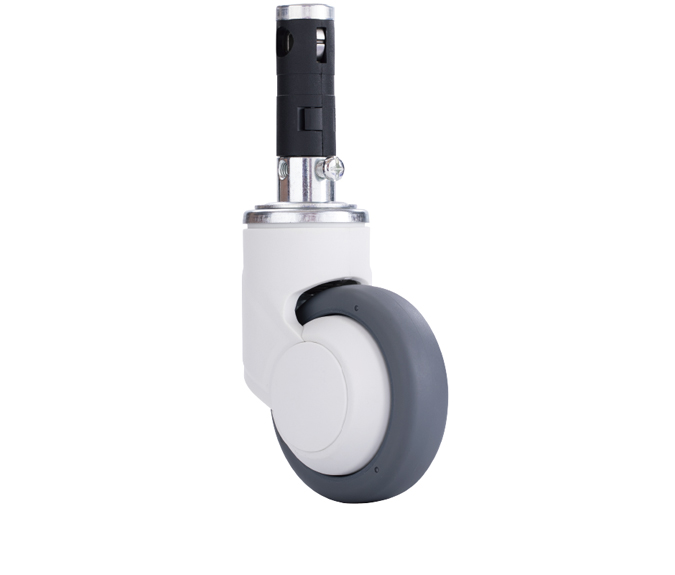

hospital bed casters

Specifications of FC Series 75mm Central Lock Caster

Main technical parameters of short rod
Wheel modelwheel sizeNumber of wheelsBrake gearBraking methodInstallation methodScrew length (mm)Rotation radius (mm)Wheel width (mm)Installation height (mm)Load capacity (kg)Wheel surface materialSpindle material
F-75C-062-D32X50-3D3075single wheel3rd gearfull brakingscrew type50±0.560.5±168±1114.5±175TPROne-piece steel
F-75C-062-D32X50-3D-2/3075single wheel3 gears 2 functionsfull brakingscrew type50±0.560.5±168±1114.5±175TPROne-piece steel
Main technical parameters of long rod
Wheel modelwheel sizeNumber of wheelsBrake gearBraking methodInstallation methodScrew length (mm)Rotation radius (mm)Wheel width (mm)Installation height (mm)Load capacity (kg)Wheel surface materialSpindle material
F-75C-WG-D28X96-3D3075single wheel3rd gearfull brakingscrew type96±0.560.5±168±1114.5±175TPROne-piece steel
F-75C-WG-D28X96-3D-2/3075single wheel3 gears 2 functionsfull brakingscrew type96±0.560.5±168±1114.5±175TPROne-piece steel

Features of FC Series 75mm Central Lock Caster

Features of FC Series 75mm Central Lock Caster
  • A swivel caster with universal and full-locking functions

    The wheel piece is built with precision ball bearings.

  • Integrated wheel frame

    Adopting nylon (PA6) main frame and polypropylene (PP) wheel core, it has strong load-bearing capacity.

  • TPR wear-resistant wheel surface

    Helps reduce noise and vibration.


  • Integrated steel main shaft​

    Helps improve the stability and durability of the wheel, ensuring safety and reliability.

  • Applicable with locking control lever

    Wheel lever with cam hole.

Download Product Specifications of FC Series 75mm Central Lock Caster

F-75C-062-D32X50-3D30 Central Locking Caster with Metal Bolt
F-75C-WG-D28X96-3D-2-30 Single Wheel Central Locking Caster
F-75C-WG-D28X96-3D30 Central Locking Caster
F-75C-062-D32X50-3D-2-30 Central Locking Caster with Metal Bolt
