DDL Motorized Casters

DDL Electric power-assisted wheel

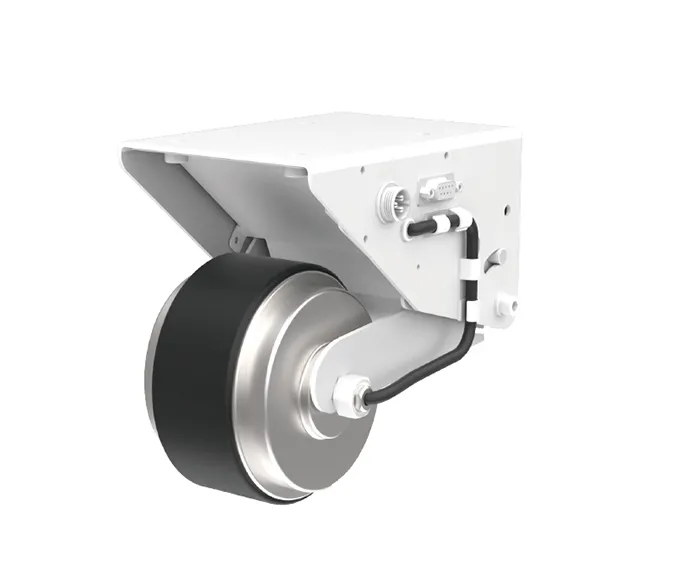

Electric power-assisted wheel is a type of wheel that provides auxiliary power with electricity. It reduces the burden of manual pushing, making movement more effortless and convenient. It is widely used in wheelchairs, handcarts and other equipment to improve their mobility efficiency and usability.

Contact Us
motorized casters wholesale manufacturer
ddl motorized casters manufacturers

Specification of DDL Motorized Casters


TEST-Motorized CastersHospital Bed WheelsWhy Choose Us
Robot WheelsMedical Cart WheelsOur Mission
Single Wheel CastersDiagnostic & Treatment Equipment WheelsPartners
Twin Wheel CasterOperating Room WheelsClients
Central Lock CasterHospital Medical FurnitureCertifications


Main technical parameters of the power-assisted wheel
AccessoriesWheel diameter(mm)Mounting height(mm)Installation height(kg)Weight （W）Rated power（V)Constant torque（N.m)Speed（km/h）Wheel lifting stroke（mm）Load capacity（kg）Climbing capabilityRange（kg）
Automatic retractable power-assisted wheel113200~2307.8200246.50~3.50~602003°8


Main technical parameters of the battery controller
AccessoriesOutput Voltage（V)Output Current（A)Capacity（A.h)Charging Voltage（V)Charging Current（A)Overcurrent Protection（A)Overall Dimensions
24V lithium battery controller22.4~29.40~10429.4217.6233*144.8*44.5


Main Technical Parameters of the Wired Controller
AccessoriesRated Voltage（V)Standby Current（mA）Power Consumption（W）Overall Dimensions
Wired controller25.9≤25≤0.65122.4*175.6*55.6


Features of DDL Motorized Casters

Features of DDL Motorized Casters
  • 01

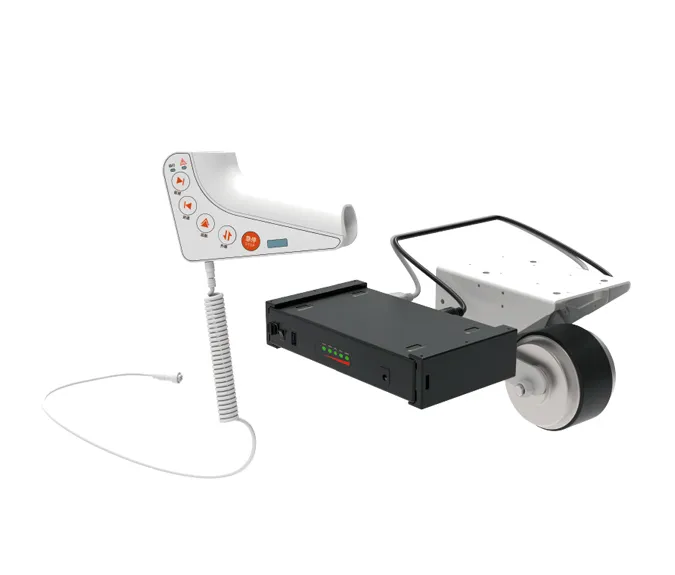

    Equipped with 1 automatic retractable electric power-assisted wheel, 1 24V lithium battery controller, and 1 wired controller.

  • 02

    Easy and simple to operate.

  • 03

    Supports stepless speed change, cruise control, and automatic lifting of electric wheels.

  • 04

    Shock-absorbing and silent TPU wheel surface.

  • 05

    Soft to the touch, with weather resistance, fatigue resistance and temperature resistance.

  • 06

    Equipped with a brushless DC motor.

  • 07

    Spark-free operation and long service life.
