| Main Technical Parameters of Short Rod | ||||||||||||
| Wheel Model | Wheel Size | Number of Wheels | Brake Gears | Brake Type | Mounting Method | Screw Length (mm | Swivel Radius (mm | Wheel Disc Width (mm) | Mounting Height (mm) | Load Capacity (kg) | Wheel Tread Materia | Spindle Material |
| A150C-WG- D32X50-3D30 | 150 | Single Wheel | 3 gears for caster | Full brake | Screw type | 51±0.5 | 115±1 | 64±1 | 151.5±1 | 150 | TPU | Auminum alloy |
| A150C-WG- D32X50-3D-2/30 | 150 | Single Wheel | 3 gears with 2 functions | Full brake | Screw type | 51±0.5 | 115±1 | 67±1 | 151.5±1 | 150 | TPU | Auminum alloy |

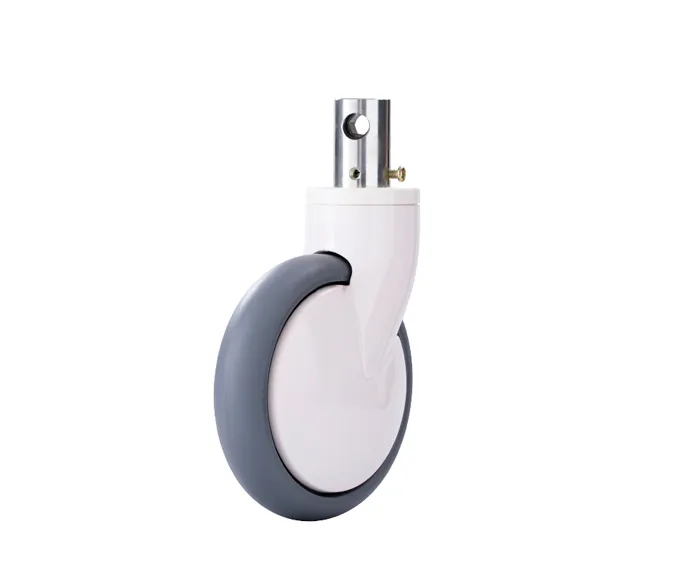

It is equipped with swivel casters that support universal movement and full locking, with precision ball bearings built into the wheel discs.
Integrated wheel frame: Adopts a PA6 nylon main frame and PP polypropylene wheel core, ensuring strong load-bearing capacity.
The TPU wear-resistant wheel surface helps reduce noise and absorb shocks.
Integral steel spindle: Helps enhance the wheel's stability and durability, ensuring safety and reliability.
Suitable for wheel rods with cam holes that match the locking control levers.
