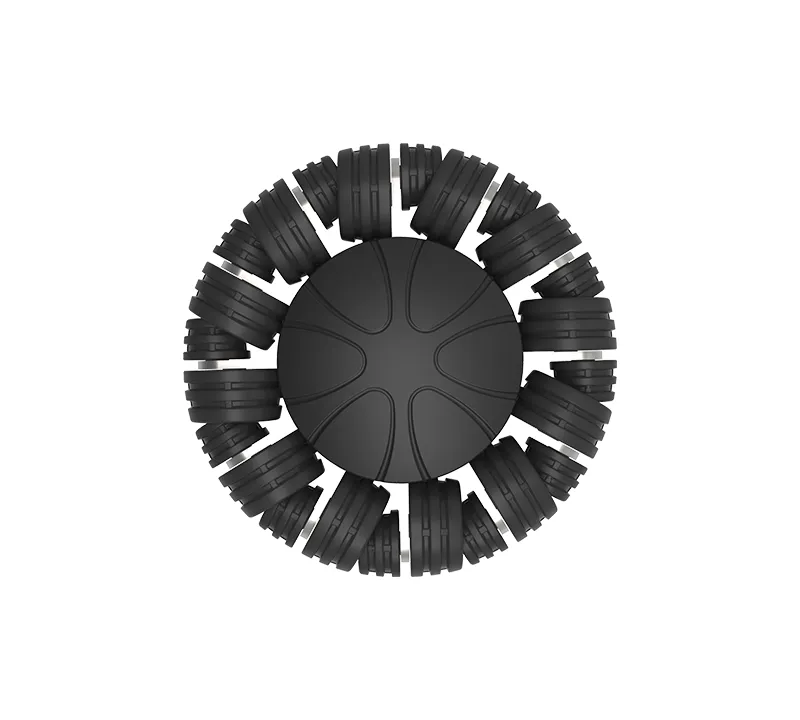

Electric Omnidirectional Wheels

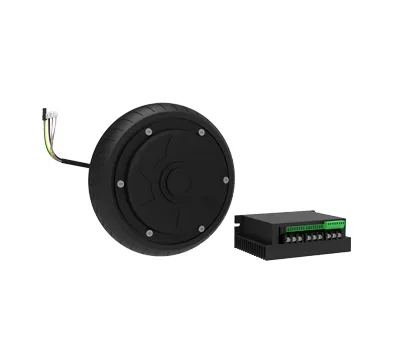

The electric omnidirectional wheel uses a three-phase hub motor, with rated static load ≥100kg. Its high-quality TPU tread ensures good grip and anti-slip performance. Equipped with precision bearings, it reduces noise and enhances smoothness. Featuring alternating large-small wheel design, it offers excellent shock absorption, wear resistance, easy maintenance and high reliability for long-term use. Compact, reasonably structured, it rotates 360° freely, moving smoothly in confined spaces and complex road conditions.

robot caster

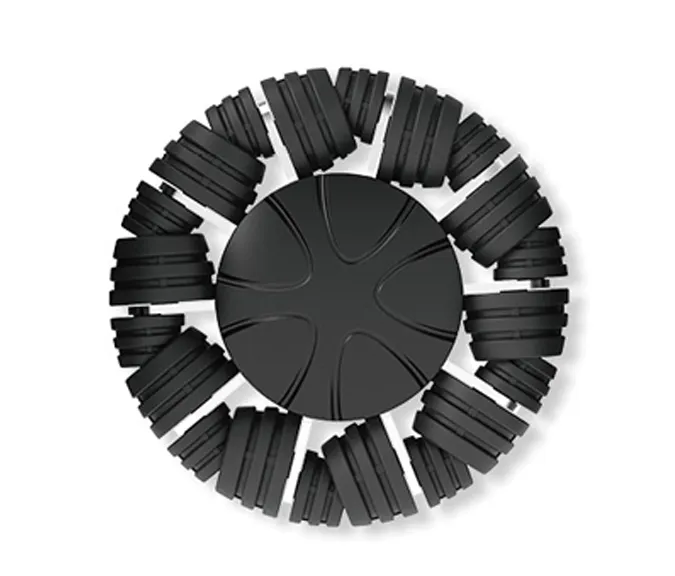

robot wheels

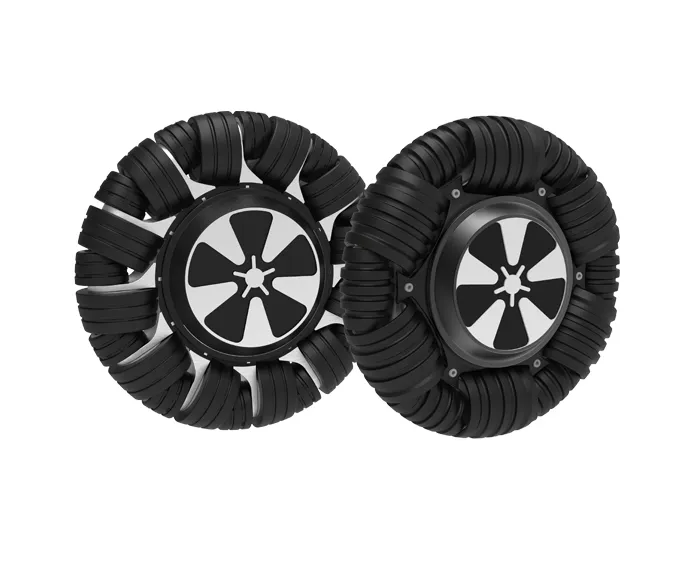

mecanum wheel robot
mecanum wheel robot car

Specification of Electric Omnidirectional Wheels

Specification Parameters of Electric Omnidirectional Wheels
SpecificationTread Width (mm)Load Capacity (kg)Rated Rotational Speed (rpm)
8-inch39.580200
10-inch65100220


Environmental and Material Parameters
ParameterValue/Specification
Operating Environment-20℃/+50℃
Tread MaterialTPU/TPR


Electrical Parameters
ParameterValue/Specification
Rated Power180W
Rated Voltage24V
Voltage Range20-36V
Rated Current≤15A
Maximum Current20A


Performance Parameters
ParameterValue/Specification
Rated Torque10N·m
Maximum Torque13 N·m
Magnetic Encoder Lines4096


Features of Electric Omnidirectional Wheels

Features of Electric Omnidirectional Wheels
  • 01

    Omnidirectional movement: Supports forward/backward, left/right, diagonal movement and in-place rotation, enabling flexible obstacle avoidance and more efficient operation in narrow spaces.

  • 02

    Precise positioning: Cooperates with servo control to achieve millimeter-level movement accuracy, suitable for precision handling and warehouse sorting.

  • 03

    Compact structure: Integrates drive unit, saving installation space and simplifying equipment design.

  • 04

    Diverse scenarios: Applicable to AGVs, service robots, medical equipment, etc., especially scenarios requiring flexible steering.
