M Series 100 mm Twin-wheel Caster (Full Freedom)

M Series

100 mm Twin-wheel Caster

MD series 100mm front-rear pedal dual-wheel casters are swivel and dual-wheel full-free casters fixed by screws. Their main frames and wheel cores use high-load-bearing nylon (PA6), with excellent oil resistance, wear resistance, drug resistance and chemical resistance ensuring long service life. Wear-resistant TPU wheel surfaces offer weather resistance, fatigue resistance, temperature resistance and excellent shock absorption. Precision internal bearings effectively reduce noise and enhance overall smooth movement.

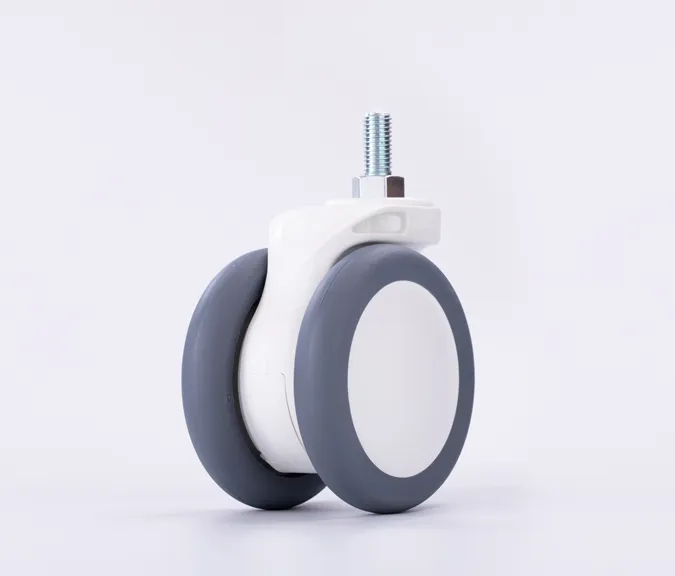

m series 100 mm twin wheel caster

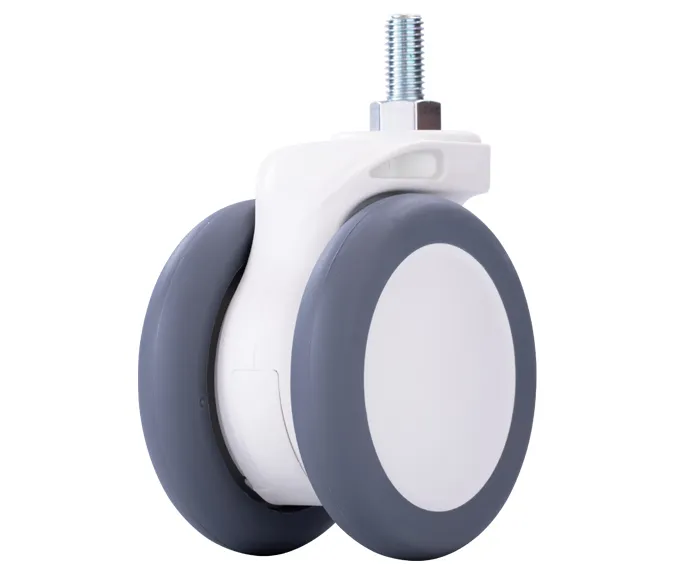

m series 100 mm twin wheel caster

Specification of M Series 100 mm Twin-wheel Caster (Full Freedom)

Wheel ModelWheel SizeNumber of WheelsBrake TypeMounting MethodScrew Length (mmSwivel Radius (mmWheel Disc Width (mm)Mounting Height (mm)Load Capacity (kg)Wheel Tread MateriaSpindle Material
M-100B-062-M12X25100Twin-WheelDirectionalScrew type25±0.383±379.9±1131±2100TPUNylon


Features of M Series 100 mm Twin-wheel Caster (Full Freedom)

Features of M Series 100 mm Twin-wheel Caster (Full Freedom)
  • 01

    Swivel and dual-wheel full-free casters, fixed by screws

  • 02

    Caster main frames and wheel cores are made of high-load-bearing nylon (PA6); excellent oil resistance, wear resistance, drug resistance and chemical resistance ensure the caster's service life.

  • 03

    Wheel surfaces adopt wear-resistant TPU material, featuring weather resistance, fatigue resistance and temperature resistance, as well as excellent shock absorption.

  • 04

    Precision bearings are equipped inside the casters, effectively reducing noise and improving the overall smoothness of the casters.

Download Product Specifications of M Series 100 mm Twin-wheel Caster
